Reverse engineering for replacement parts.
Ruscho assesses existing parts, samples and legacy components to develop agreed CAD models, drawings and replacement options.
Project goals
Scope may include
Common applications
Related pages
Agree what must be measured, recreated and checked.
The method depends on the part condition, functional interfaces, required CAD outputs, wear and permission to reproduce the design.
What to send for a quotation

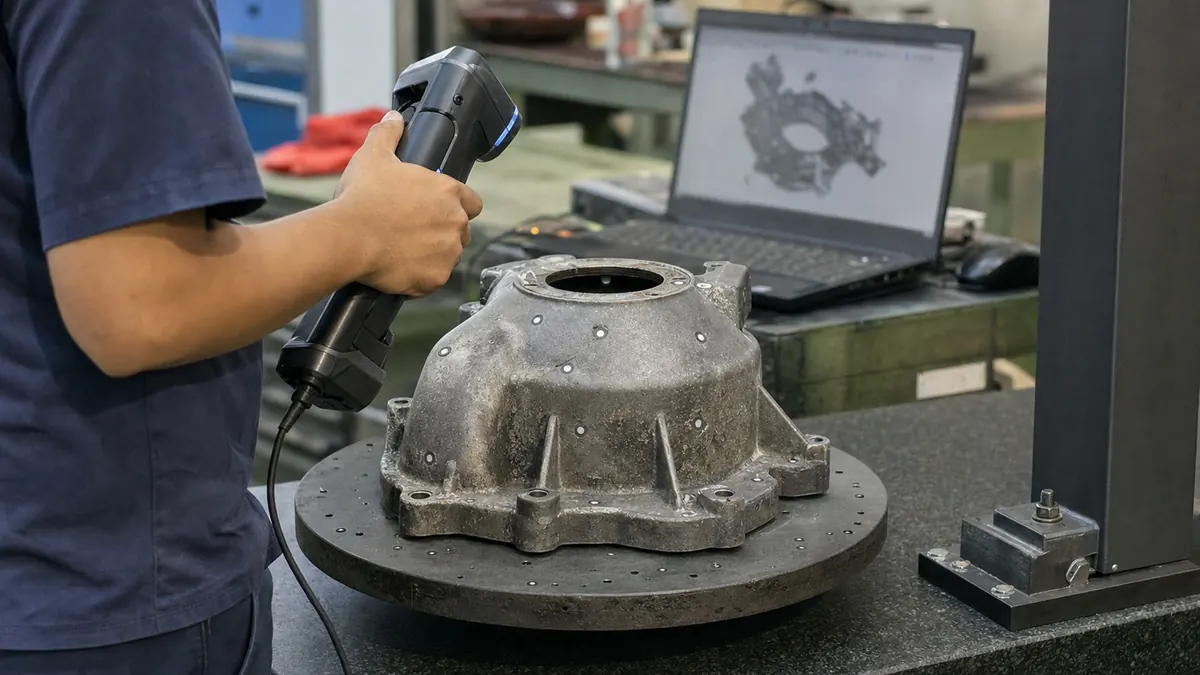

Capture and reconstruction
Measurement method selected for the geometry
Wear and damage treated separately from design intent
Native CAD, neutral files, or manufacturing drawings
Fit and responsibility
Functional interfaces and fit checks
Prototype or replacement checking method
Confidentiality and intellectual-property boundaries
Ruscho will need enough lawful access and technical context to assess whether recreation is appropriate.
Frequently asked questions
Can Ruscho recreate a part without the original drawing?
Ruscho can assess an existing part or sample and recreate agreed CAD or drawing information, subject to access, part condition and permission to reproduce it.
Is reverse engineering only for machine parts?
The method can also be assessed for fixtures, tooling, assemblies and replacement items where the original design information is missing.
Send us your drawings, site details or process requirements.
We will direct your enquiry to the right team for an initial review.
